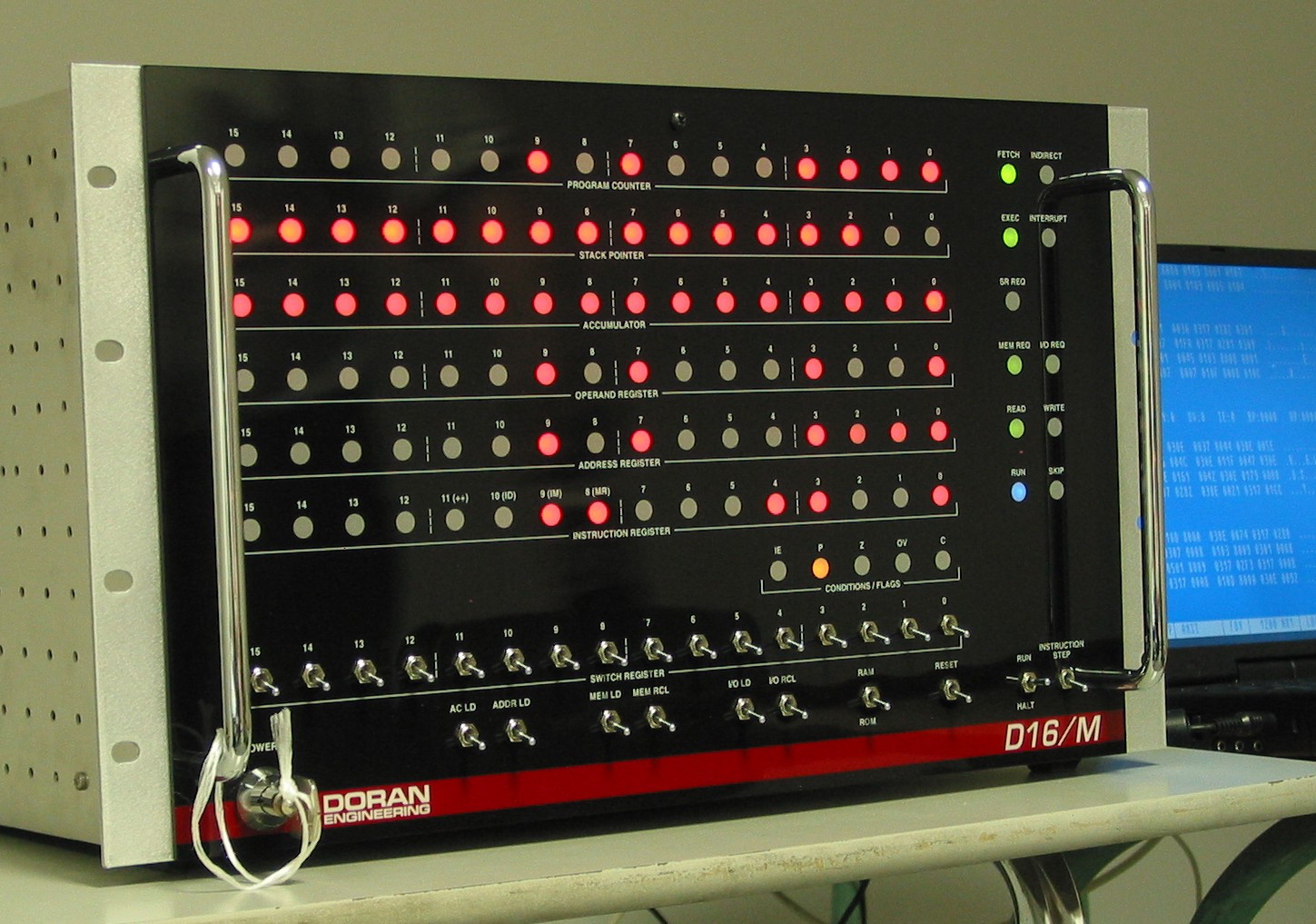

|D16/M Peripherals Page.
on pictures to get larger/higher quality images.
itself has become a bit cluttered; so here is a separate one to
describe the various plug-in modules.

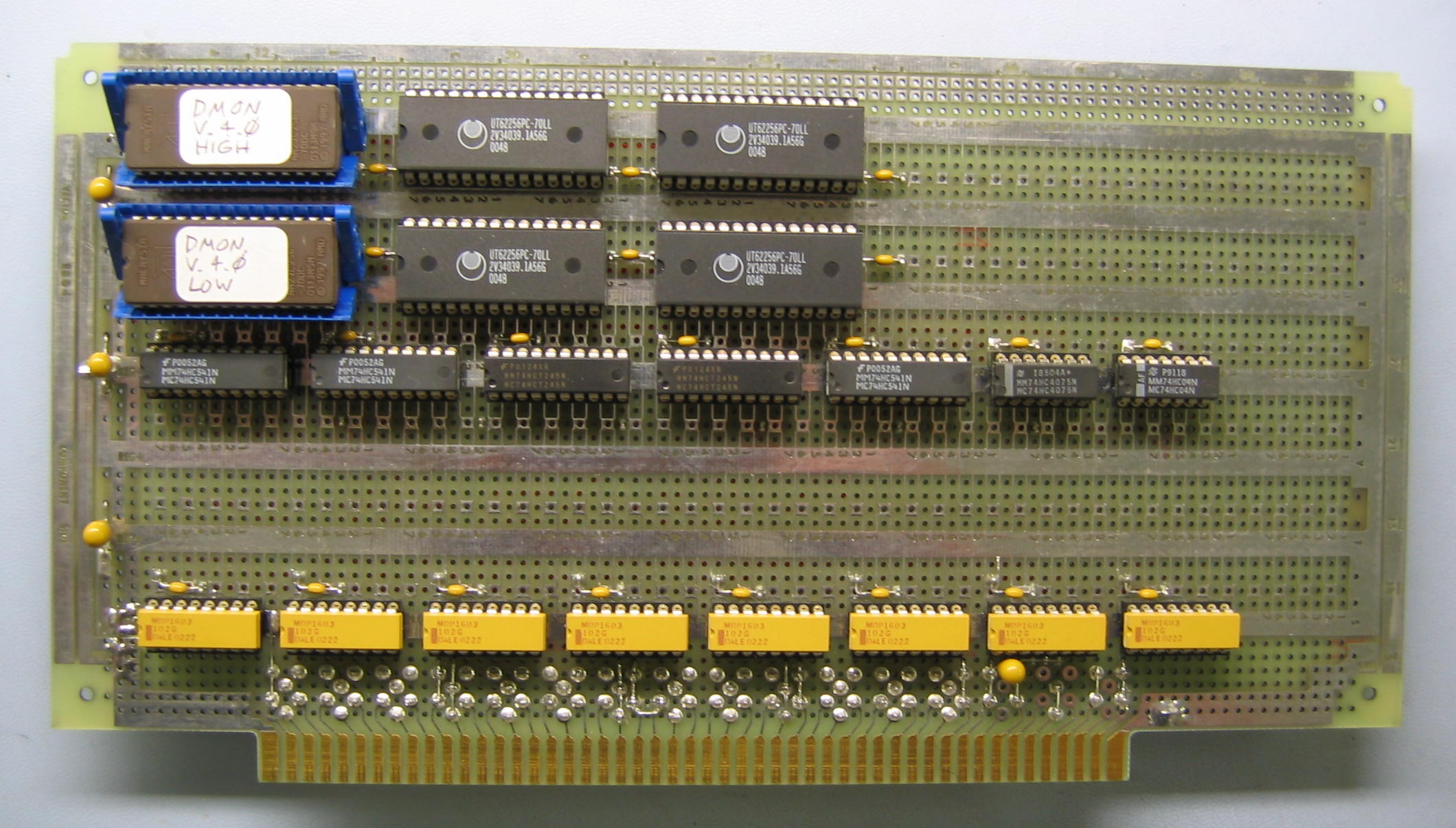

||« This is a photograph of the D16/M Main Memory and Bus Terminator Module. It carries 64K words of CMOS RAM, 32K words of EPROM, and termination resistors for the D16/M bus.|
|« Here is the
Serial/Parallel I/O Module. It provides two RS-232 compatible
serial ports and two Centronics-compatible printer ports, and supports
either polled or interrupt-driven operation.

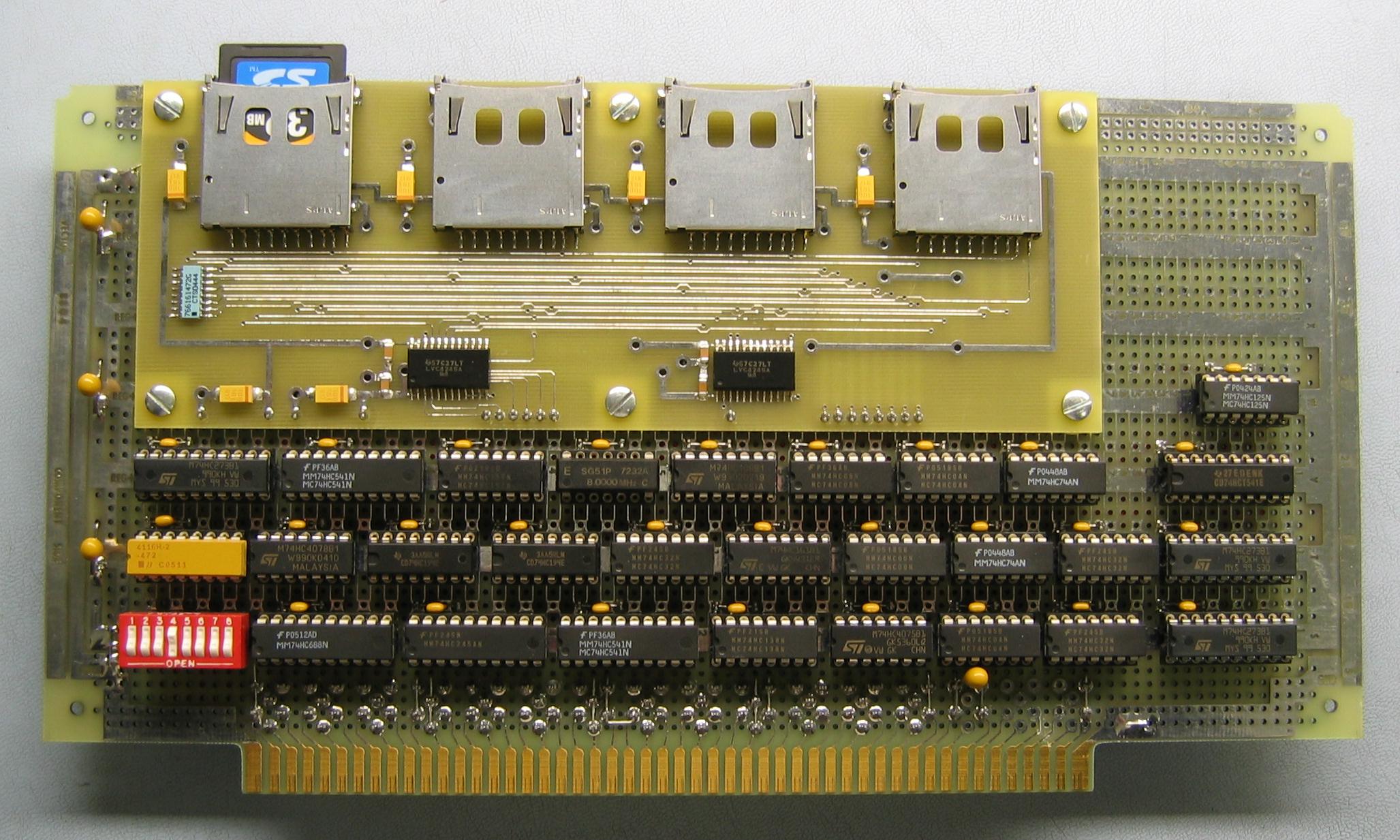

|« This is the new SD Card
Interface Module. It allows the D16/M to access up to four SD
flash memory cards, using a hardware- driven implementation of the SPI
serial protocol . There is a 32 MB SD card plugged into Unit 0,
the socket on the left.
|The D16/M peripheral
documentation follows. All docs are in Adobe PDF fromat, except
those specifically indicated otherwise.
D16_bus D16/M external bus connector pinout.
MEM_SCH Schematic Diagram of the Main Memory/Bus Terminator Module.
SPIO_SCH Schematic Diagram of the Serial/Parallel I/O Module.
SDIO_SCH Schematic Diagram of the SD Card Interface Module.
membd_layout Component layout for the Memory Module.
spio_layout Component layout for the Serial/Parallel I/O Module.
sdio_layout Component layout for the SD Card Interface Module (coming soon!)
SDIOdoc Commands/Addresses for the SD Card Interface Module
SDIO.asm (D16 assembly) Source Code for the SD Card Interface Test Program
peripheral_design_notes (HTML) Design and Construction Notes for the D16/M peripherals.
